Bobcat

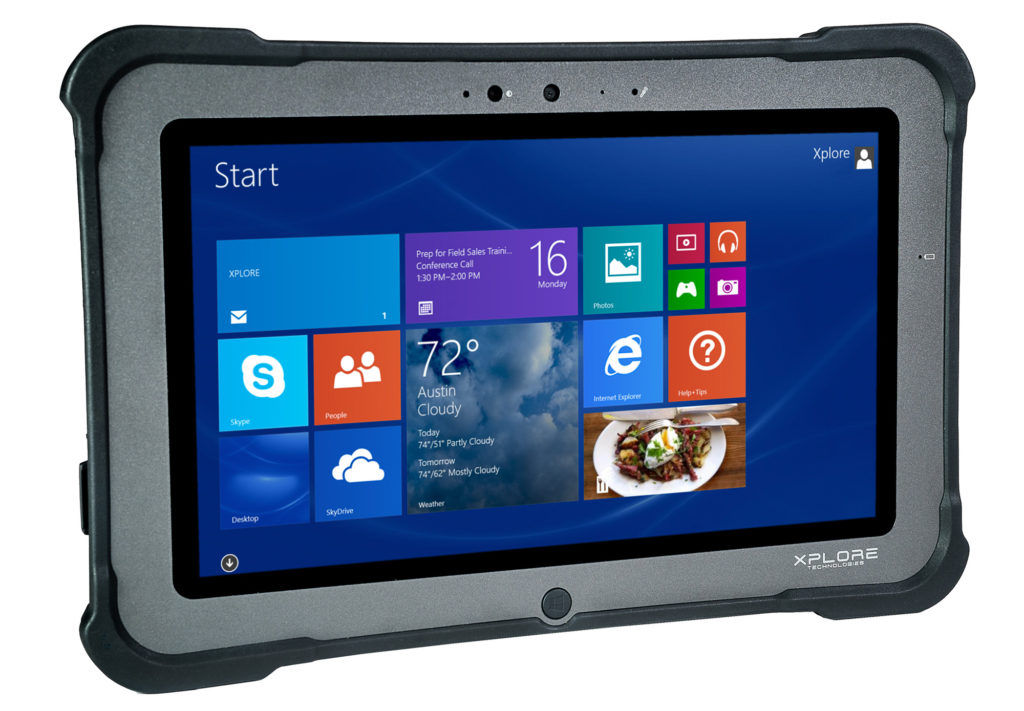

Product Code: Bobcat The Bobcat Fully Rugged Windows 8 Pro Tablet The Bobcat tablet is the latest in Xplore’s family of fully-rugged tablets. Featuring an array of integrated options, and a sleek, sophisticated design, the Bobcat will change the way you look at tablets. With a MIL-STD-810G rating and Windows® 8.1 Pro, the Bobcat can go from the boardroom to the work site without missing a beat.

Designed for Ultra Mobility

  • Thin Design for Mobile Transport (2.4 lbs)
  • Full Shift Battery Life: Up to 8 Hours, Up to 14 Hours with External Battery
  • Options for Top Handle, Shoulder Strap, and Back Hand Strap
  • Vehicle Docking Option with a Quick Release Latching System

By the Experts in Rugged

  • MIL-STD-810G Certified and IP65 Rating- Dust & Water Resistant
  • Drop Rating: 5′
  • Operating Temps: -4 °F (-20 °C) to 140 °F (60 °C)
  • Lightweight Rugged Magnesium Midframe Stiffens and Protects LCD & Electronics
  • Raised Corner Bumpers & Optional Armortech Screen Guard Protects Screen

Powerful Technology and Communications Suite

  • Intel® Bay Trail E3845 Quad Core 1.91 GHz Processor
  • Windows® 8.1 Pro or Windows® 7 Pro
  • Standard 128 GB SSD, with optional upgrade to 240 GB SSD
  • Standard Bluetooth 4.0, Wifi 802.11 ac
  • Optional 4G LTE for blazing fast connectivity
  • Optional RJ-45 Gigabit Ethernet

Optimized for Security Conscious Organizations

  • NFC for Reading Smart Cards or Optional Fingerprint Scanner
  • Optional CAC Reader: FIPS 201 Compliant
  • Kensington® Lock Slot for Physical Security
  • Ensures Only Authorized Personnel Access

xCapture Pro – Camera Software

  • Geotagging to generate images with stamped GPS coordinates
  • Barcode scanning capabilities for quick inventory lookup and management projects
  • Save and share (email, Internet upload) function for quick turnaround
  • Simple image organization and gallery settings
  • Multi-language capability for global use
  • xCapture Pro DataSheet

Expansive Features and I/O

  • Ports include 2 x USB 3.0, Micro SD, Micro HDMI-Out, Micro SIM Card Reader, and More
  • RJ-45 Gigabit Ethernet Standard or Optional Broadband 4G LTE
  • Two Standard Cameras (5 Megapixel Rear-facing with Flash and HD Front Camera)
  • Integrated Speakers and Microphone for Voice Collaboration

Vibrant Outdoor Viewable Display with Multi-Touch

  • Outdoor Viewable with Anti-Reflective Glass
  • 500 NITs Direct Bonded Screen
  • Contrast Ratio: 800:1
  • 1366 x 768 Resolution
  • 10-Finger Multi-Touch Interface with Passive Pen Options
  • Glove Touch Capability
Processor

Intel® Atom™ E3845 Quad Core 1.91 GHz

Graphics

Intel® Integrated Mobile Gen7 Graphics

Display

500 NITs Direct Bonded Screen Display
178° Viewing cone (89° Off-Axis)
Contrast Ratio: 800:1, Aspect Ratio 16:9
Ambient Light Sensor (ALS)
10-Finger Multi-Touch, Glove Touch

Memory

4 GB DDR3L 1333

Storage

Standard 128 GB SSD
Optional Upgrade to 256 GB SSD

Dimensions/Weight

11.05” (28.1 cm) x 7.07” (18.0 cm) x 0.86” (2.2 cm)
Weight: Starting at 2.4 lbs (1.09 kg)

Operating System

Windows® 8.1 Professional, 64-Bit
Windows® 7 Professional, 32-Bit, 64-Bit

Security

Optional Smart Card Reader with CAC capability
Integrated Trusted Platform Module - TPM 1.2
Kensington® Lock Slot
System is FIPS 140-2 Compliant

Integrated Communications

Wireless LAN: 802.11 ac
Broadband: 4G LTE (Optional)
GPS: Integrated, 2.5m Accurate Satellite
Bluetooth: 4.0
LAN: 10/100/1000 Gigabit Ethernet (RJ-45)

Ports

DC power
2 x USB 3.0 Ports
Micro SDXC
Micro HDMI-out
Micro SIM Card Reader
RS232 Serial Ready Port
Headphone/Speakers Mini-Jack Stereo, Smart Phone Headphone Compatible

Collaboration

NFC (Optional)
Integrated Speakers and Microphone
Integrated 5 Megapixel Digital Camera (Rear-Facing with Flash)
Integrated 720P HD Megapixel Digital Camera (Forward-facing)
1D/2D Barcode Scanner (optional)
Fingerprint Scanner (optional)

Input & Status Indicators

Projected Capacitance Multi-touch
Status Indicators: Power, Charge/DC-in, Camera Active

Battery

Up to 8 Hour Battery Life (5300 mAhr, 39.22 Whr, Single Battery)
Up to 14 Hour Battery Life (4200 mAhr, 31.08 Whr, Dual Battery
Hot swappable external battery

Power Supply

Input Voltage: 19V with AC Adapter
Supports 12~20V Input DC on Tablet

Accessories & Docking

xDock G2 IP55 Waterproof and Dust Resistant Dock
Industrial Desktop Dock
Smaller Tip Metal Mesh Pen Stylus for Handle
Handle/Shoulderstrap with Pen And Tether
Handstrap
Armortech Screen Protector
External Battery
True Serial Cable
External Battery Brackets, External Battery
12-16V Input, 19V Output DC-DC Converter (Cigarette Lighter Adapter)
12-32V Input, 19V Output DC-DC Converter (Heavy Duty Cigarette Lighter Adapter)

Rugged Specs

MIL-STD-810G
IEC (60529) Ingress Tested to an IP65 Standard
